Descriptions |

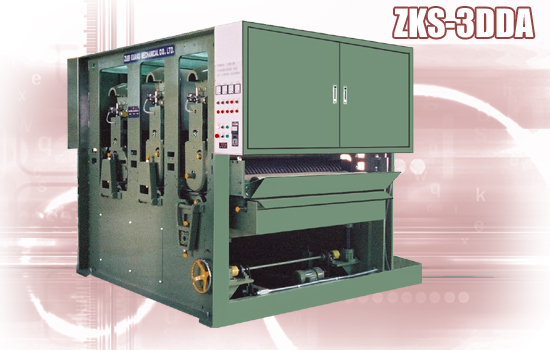

ZKS-3DDA |
| Max.
working width |
1,270m/m |
| Max.
working height |
125m/m |
| Feeding
speed |
30-90M/min |
| Abrasive
belt |
1,310m/m
X 2,615m/m |
| Power
of first head |
75HP |
| Power
of second head |
60HP |
| Power
of third head |
50HP |
| Iron
main drive roller |
Φ310m/m
X 1,345m/m X 2PCs |
| Rubber
main drive roller |
Φ310m/m
X 1,345m/m X 1PCs |
| Dimension
of bottom roller |
Φ110m/m
X 1,400m/m X 6 PCs |
| Dimension
of bottom roller |
Φ165m/m
X 1,350m/m X 3PCs |
| Dimension
of pressing roller |
Φ165m/m
X 1,345m/m X 6 PCs |
| Dimension
of strained roller |
Φ265m/m
X 1,345m/m X 3 PCs |
| Dimension
of feeding belt roller |
Φ229m/m
X 1,400m/m X 2 PCs |
| Feeding
power |
15
HP |
| Table
lifting power |
1
HP |
| Panel
brush power |
1
HP |
| Dimension
of feeding conveyer |
7,400m/m
X 1,350m/m |
| Floor
required |
2820m/m
X 2,800m/m |
| Machine
weight |
12,000KGs |
|
|
|
| |
|
|
