| Descriptions |

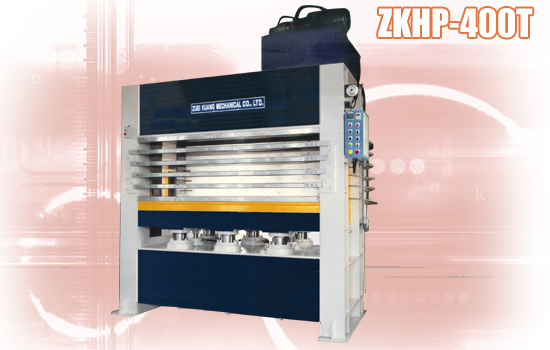

ZKHP-400T |
| Pressing
capacity |
400
Ton |
| Table
area |
1,360m/m
X 2,570m/m |
| Number
of platen |
6
PCs |
| Thickness
of platen |
40m/m |
| Distance
between platen |
90m/m |
| Thickness
of steeliness platen |
1.5m/m
(#304) |
| Stroke |
450m/m |
| Diameter
& Number of main rams |
Φ200m/m
X 6 PCs |
| Diameter
& Number of downward rams |
Φ125m/m
X 2 PCs |
| Max.
use pressure |
210
Kg/Cm2 |
| Downward
speed |
Approx.
4,500mm/min |
| Upward
speed |
Approx.
4,500mm/min |
| Main
motor |
20HP
with automatic pressure and time control |
| Machine Weight |
22,500 KGs |
|
|
|
| |
|
|
